Recently, Zhejiang Wuyi Xinyuan energy storage Power station booster station successfully connected to the grid, marking Zhejiang Province's largest single installed capacity of grid side energy storage project officially put into operation.
1.project context

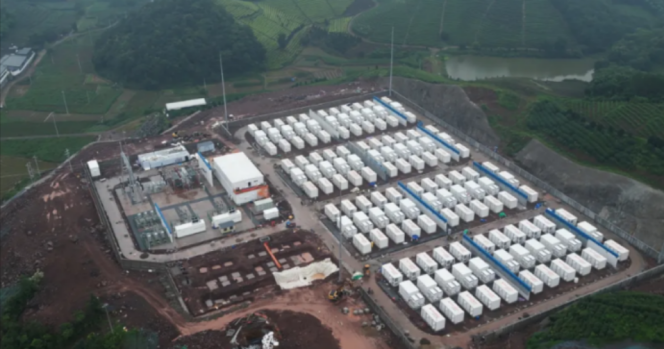

With an installed capacity of 200MW / 400MWh, Xinyuan Energy storage Power Station is currently the largest grid-side energy storage project in Zhejiang Province. The station adopts liquid-cooled energy storage prefabrication technology, adopts lithium iron phosphate battery energy storage system, and consists of energy storage silos and converter booster silos. The total investment of the project is 800 million yuan.
The energy storage power station is an important project to promote high-quality development, and is also an important measure for Zhejiang power grid to build a new power system and ensure the safe and stable supply of energy and power, which has been included in the "14th Five-Year Plan for New energy Storage Development of Zhejiang Province" and the 2024 "List of thousands of trillion projects for expanding effective investment in Zhejiang Province".
The electrochemical energy storage method adopted by Xinyuan energy storage station has the characteristics of fast frequency modulation rate, high precision and strong short-term power throughput capacity, which can effectively alleviate the impact of intermittent and random energy sources such as wind energy and photovoltaic energy on the power grid, and provide more abundant peak regulation means for the power grid, which is of great significance for promoting clean and low-carbon energy transformation, coping with extreme events in the power grid and ensuring energy security.
2.FGI scheme

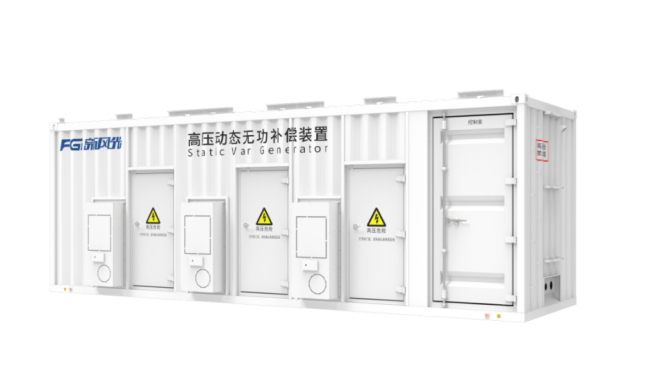

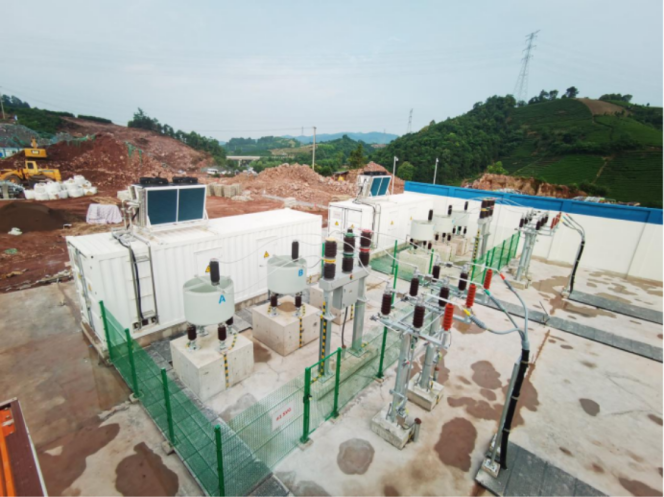

FGI provides two 20Mvar SVG devices for the energy storage power station to provide reactive power support for the energy storage power station, with stable voltage, improve power factor, suppress harmonics and other functions to solve the power quality problem of the energy storage power station and ensure the safety of the grid.

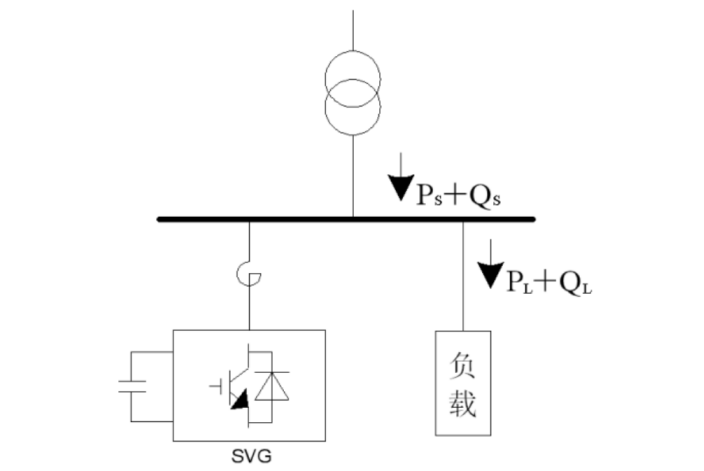

SVG collects the voltage and current signals of the system, calculates the reactive power and power factor of the system, and automatically adjusts the output according to the changes of the system, so that the power factor or voltage is stable within the set range, and the whole adjustment process is smooth and accurate. SVG products have standardized interfaces, can be connected with the integrated automation system of the station, can achieve remote control, and real-time upload equipment operating status and fault information, to achieve a high degree of automation and integration.
3.product superiority
(1)Excellent high and low voltage crossing control function
FGI Static Var Generator (SVG) has excellent high and low voltage crossing control function, the performance index is better than the national standard, to ensure the stable operation of the equipment.
(2) Quick response
FGI Static Var Generator (SVG) reactive response time is less than 5ms to achieve accurate and fast compensation.
(3) Harmonic control function
FGI Static Var Generator (SVG) has the function of multiple harmonic detection, and sends out reverse harmonic current for control, and controls the power quality of harmonic current output at the station.
(4) A wide variety of models to meet the needs of project layout
FGI Static Var Generator (SVG) has been continuously updated and iterated to optimize the spatial structure layout, and its products cover forced air cooling, air conditioning internal circulation, air water cooling, air water cooling, water water cooling, indoor and outdoor installation styles, reaching the industry's leading level.
FGI has focused on the research and development and application of power electronics technology for many years, SVG products have completely independent intellectual property rights, series of products are widely used in wind power, photovoltaic, metallurgy, coal and other industries, the market share has increased year by year, and won the national manufacturing single champion title. FGI will continue to practice the corporate vision of "saving energy and serving society" and contribute to the country's "double carbon" goal.
