The Application of FGI frequency converter in seamless steel pipe sizing machine
1. Preface:
Hot-rolled seamless steel pipe plays a vital role in the urban construction and the manufacturing process of mechanical products. Its production and processing technology has also been very rapid development under the trend of the continuous expansion of the market demand. The production process of hot rolled seamless steel pipe mainly includes round tube embryo, heating, perforation, rolling pipe, setting (reducing) diameter, cooling and straightening; and perforation, rolling pipe and fixed diameter are the main deformation process. Setting machine: it is to roll the wool pipe out for further winding rolling to improve the quality of the outer surface of the steel pipe. After the diameter of the steel pipe, the diameter deviation is small, small ellipticity, good straightness, smooth surface.
Easy energy frequency converter has been a large number of mature applications in the industry, has achieved obvious technical and economic effects, and effectively greatly improve customer production capacity.
2. System configuration:

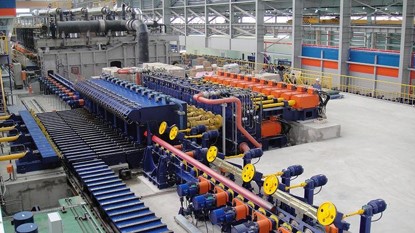

The system uses 8 FD 100 series frequency converters to control 8 fixed diameter frame independent transmission, each frame is driven by a motor, each frame has a non-interference speed regulation and transmission system. The system uses PLC + touch screen to conduct real-time frequency adjustment and operation status monitoring of each frequency converter through 485 communication. This separate transmission mode is flexible, has a wider application range, and requires higher communication response and speed response of frequency converter.
3. Application advantages:
Effectively reduce the design and maintenance cost of the system, convenient operation, save energy consumption, more than 20% than the collective transmission, prolong the service life of the machinery;
Fast communication response, simple wiring, high-speed communication does not lose the frame, so that the equipment is more stable operation;
With the industry-leading motor vector control algorithm, the motor temperature rise of the fixed diameter machine equipment is significantly decreased, and the starting torque is up to 180%, so that the motor power is stronger;
High control precision, torque accuracy can reach ± 5%, speed accuracy ± 0.03%, improve the production process, improve the control accuracy of the equipment, the rolling effect is good, high efficiency;
Powerful protection function, can provide complete protection functions of overcurrent, overvoltage, undervoltage, overload and other functions, overload capacity of 150% rated current for 1 minute, so that the system operation is more stable and reliable.
