In the evolving world of technology, the demand for efficient and reliable power inverters is on the rise. As the demand for renewable energy increases, the need for high-quality power inverters that can manage the complexity associated with renewable energy is critical. FGI, a leading company in the field of power electronics, has proposed an innovative solution, the four-quadrant master-slave high voltage frequency inverter. This cutting-edge technology has been applied in Asia's first deep well, marking a major milestone in the use of renewable energy in a challenging environment.

Shandong Laizhou Bay recently reported good news, Asia's first deep shaft Sanshandao successfully built a more than 1000 meters of auxiliary shaft, FGI high pressure four-quadrant inverter in the special deep shaft lifting electrical control system application, for China's "13th Five-Year" major research plan "deep metal mineral well construction and lifting key technology" demonstration project to provide strong support.

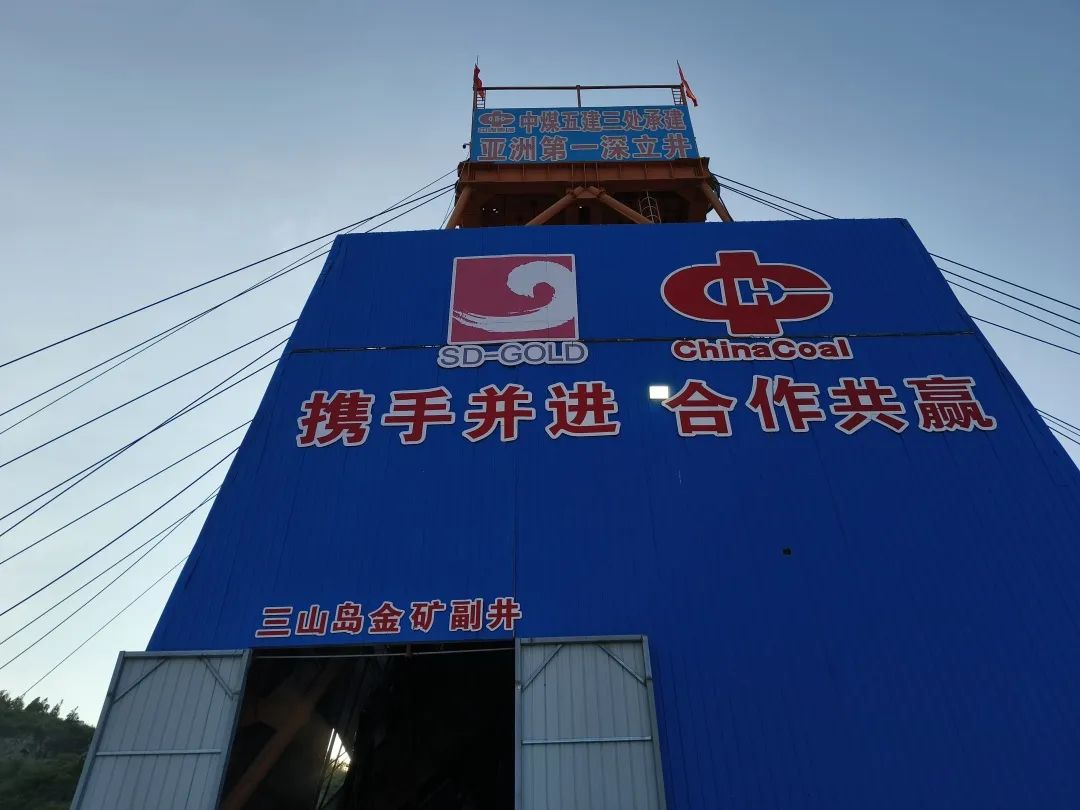

China's existing ultra-deep shaft drilling depth is less than 1600 m, more than 1500 m deep Wells have not yet mature construction experience. Sanshandao auxiliary shaft is an undersea tunnel project with a total length of 1,915 m after completion. It is an extremely deep well with complex construction conditions such as large formation stress, strong fissure seepage water, complex and variable geological conditions, and continuous rise in well temperature, which are prone to disasters such as large deformation, rock burst, and water inrush at working face.

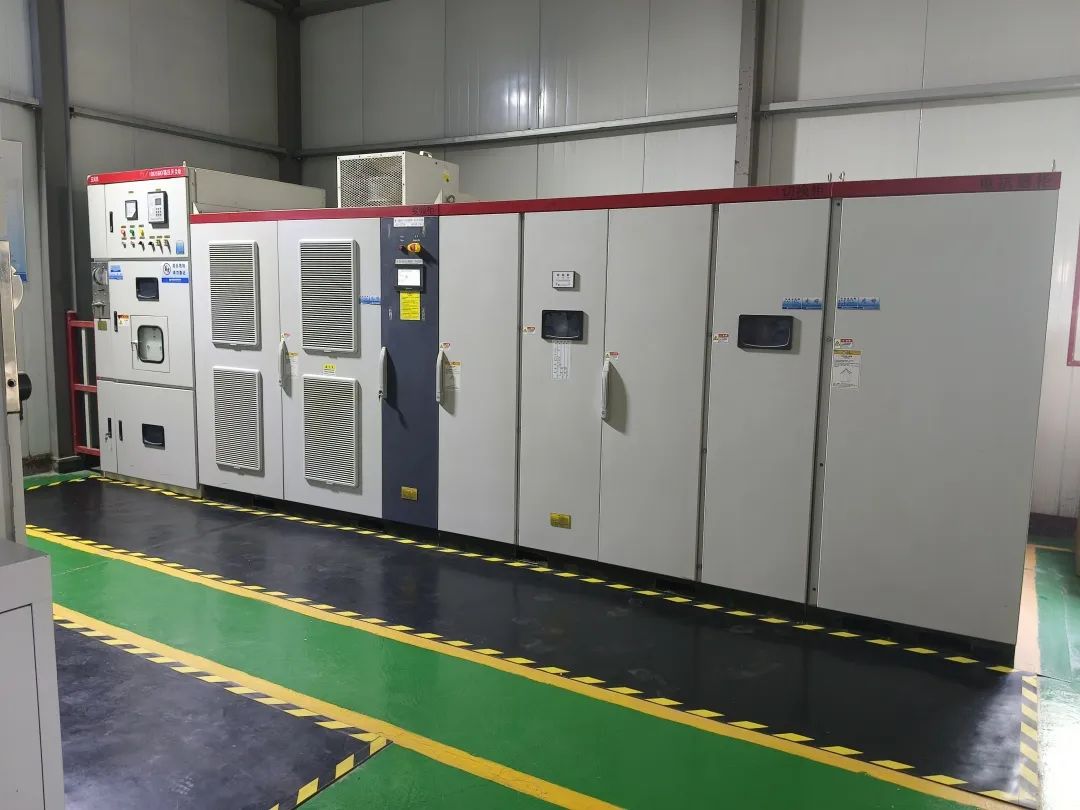

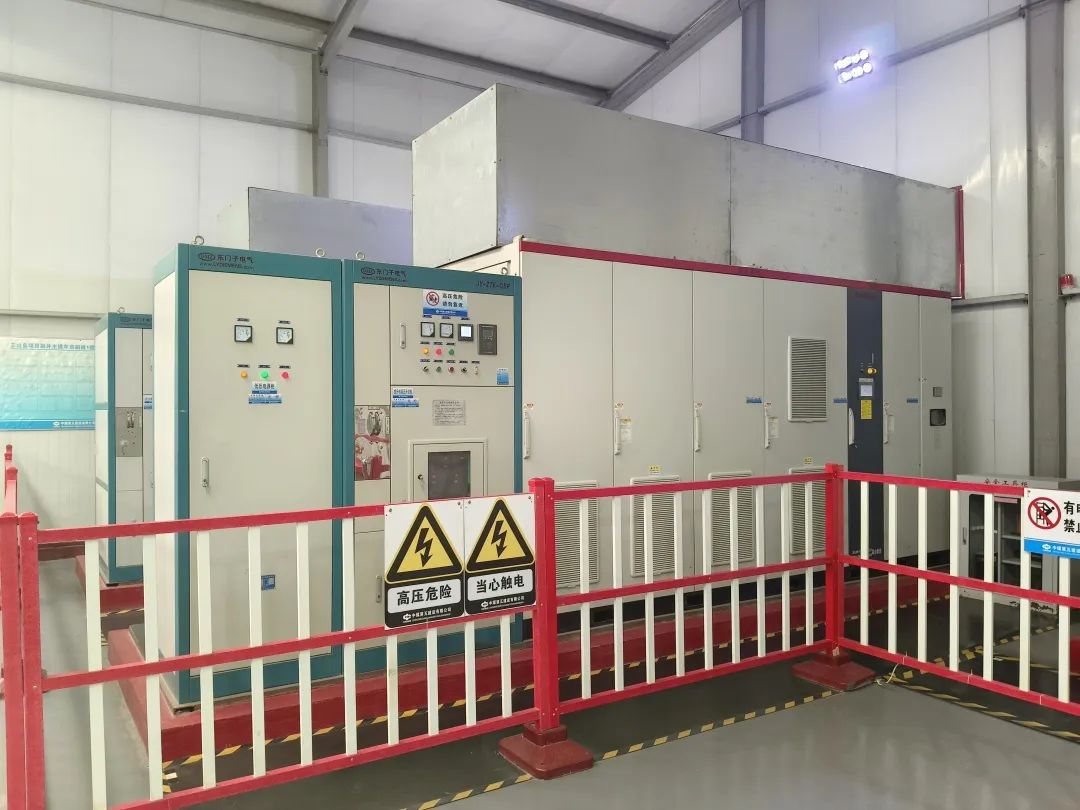

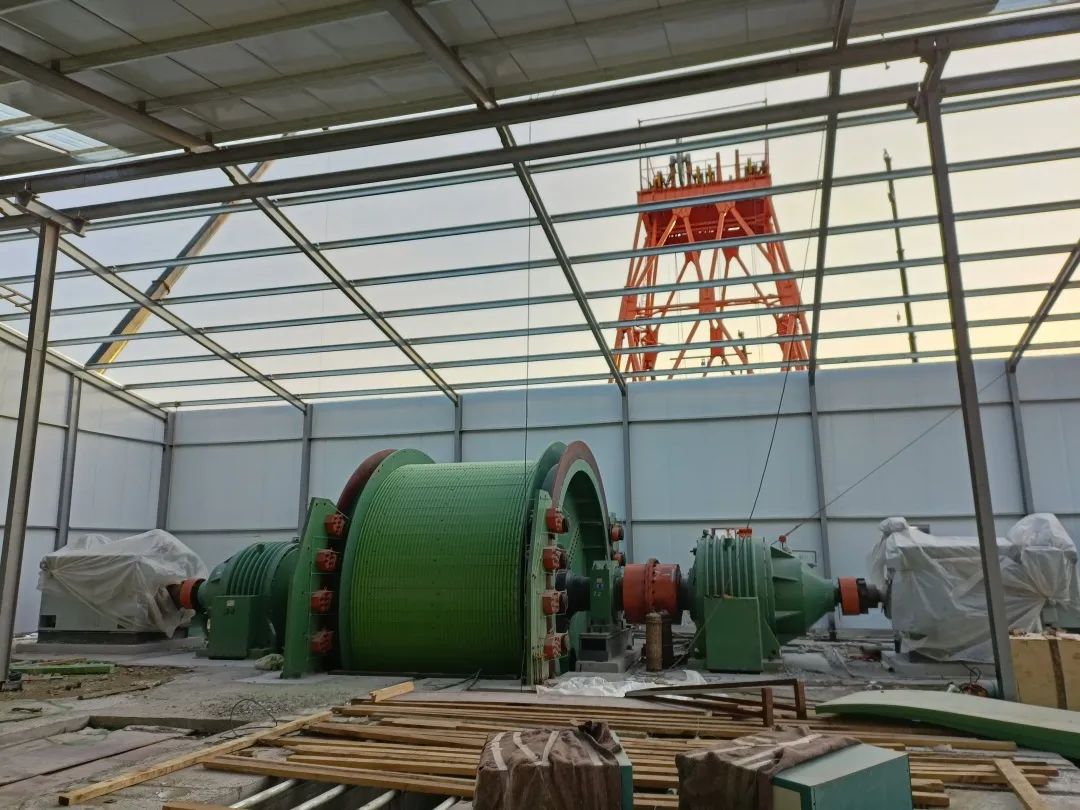

Sanshandao auxiliary shaft lifting system is equipped with two drilling winches with a diameter of 5 meters developed by 900 million Heavy Industries, the use of the latest developed advanced double motor double reduction double-side drive mode, equipped with four sets of FGI high-pressure four-quadrant frequency inverter, so that the work efficiency of the machine room is increased by 30%, to achieve the purpose of unattended.

Sanshan Island auxiliary shaft lifting system adopts double motor synchronous traction of a drum, when the double motor synchronous operation, is the double machine working mode, through the master-slave control, double motor coaxial role, you can lift more load up, in the case of light load, you can also convert it into a single working mode, you can also carry out any conversion between single machine and double machine. This makes the flexibility and safety of production have been greatly improved, and the single-machine working mode also ensures the efficiency and safety of the use of the motor in the early stage of well construction.

Advantages of using FGI four-quadrant master-slave high voltage frequency inverters.

One of the key advantages of the FGI frequency inverter is its ability to provide precise control over the power flow, allowing seamless integration with renewable energy sources such as wind and solar. This capability is particularly important in the context of Asia's first deep well, where energy demand is high and the need for efficient energy management is critical. The frequency inverter's high efficiency and low harmonic distortion also contribute to its appeal, ensuring optimal use of energy while minimizing any negative impact on the grid.

The application of the FGI Four-Quadrant Master-Slave High Voltage Frequency Inverter in Asia's first deep shaft is a testament to the value of innovative power management solutions in challenging environments. FGI's commitment to pushing the boundaries of power electronics and addressing the specific needs of renewable energy applications has paved the way for a more sustainable and efficient future. As the demand for high-quality power inverters continues to grow, FGI is well-positioned to lead the way in shaping the future of renewable energy.
