Static Var Generator(SVG)
Application of FGI Static Var Generator in new energy photovoltaic power station in Dongying City

1.Overview

Tangzheng New Energy power station has a planned capacity of 400MW, which is the largest fishing and light complementary project in Shandong Province.


2.Implementation plans

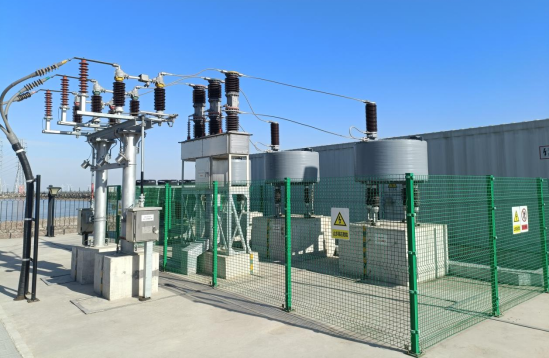

The project uses 10 sets of 13Mvar Static Var Generator (SVG) equipment, and the total compensation capacity reaches 130 Mvar. The voltage and power factor of the whole power station are compensated and controlled. Then the power quality of the photovoltaic power station is guaranteed after the equipment is operational, and the impact on the power grid is reduced.


3.Application advantage

(1) High and low voltage cross performance is superior

Static Var Generator (SVG) has excellent cross-control function of high and low voltage, and the performance indicators are better than the national standards to ensure the stable operation of the equipment.

(2) Complex working conditions, multi-machine coordination

Under the complex condition of multi-power supply project, cooperative switching control can be realized by using multiple Static Var Generator (SVG).

(3) Harmonious governance function

Static Var Generator (SVG) has the function of multiple harmonic detection, and emits reverse harmonic current for management, and controls the power quality of harmonic current output of the power station.

(4) Static Var Generator (SVG) has a variety of models to meet the needs of engineering layout

After continuous update and iteration, optimize the spatial structure layout, the products cover forced air cooling, air conditioning internal circulation, air cooled water cooled, feng shui cooling, water cooled water cooled, indoor and outdoor installation style requirements, reaching the industry leading level.
