Static Var Generator(SVG)
Application of FGI Static Var Generator in the largest wind-landscape fishing and storage project

1.Project overview

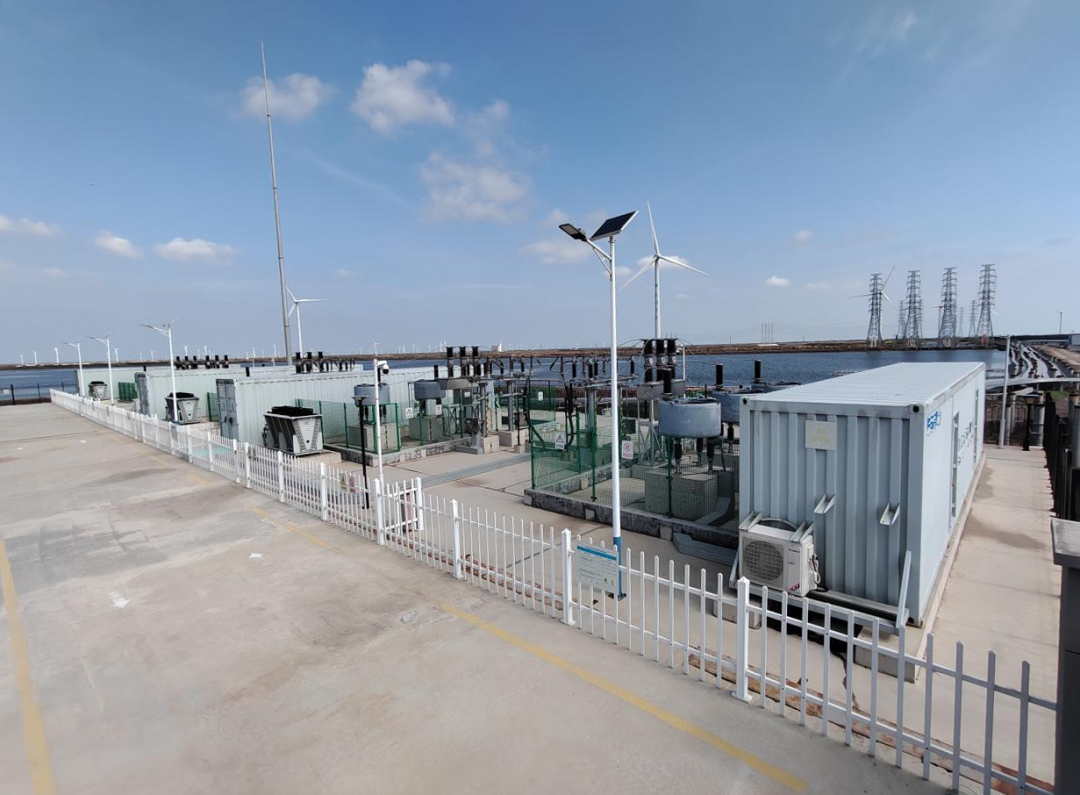

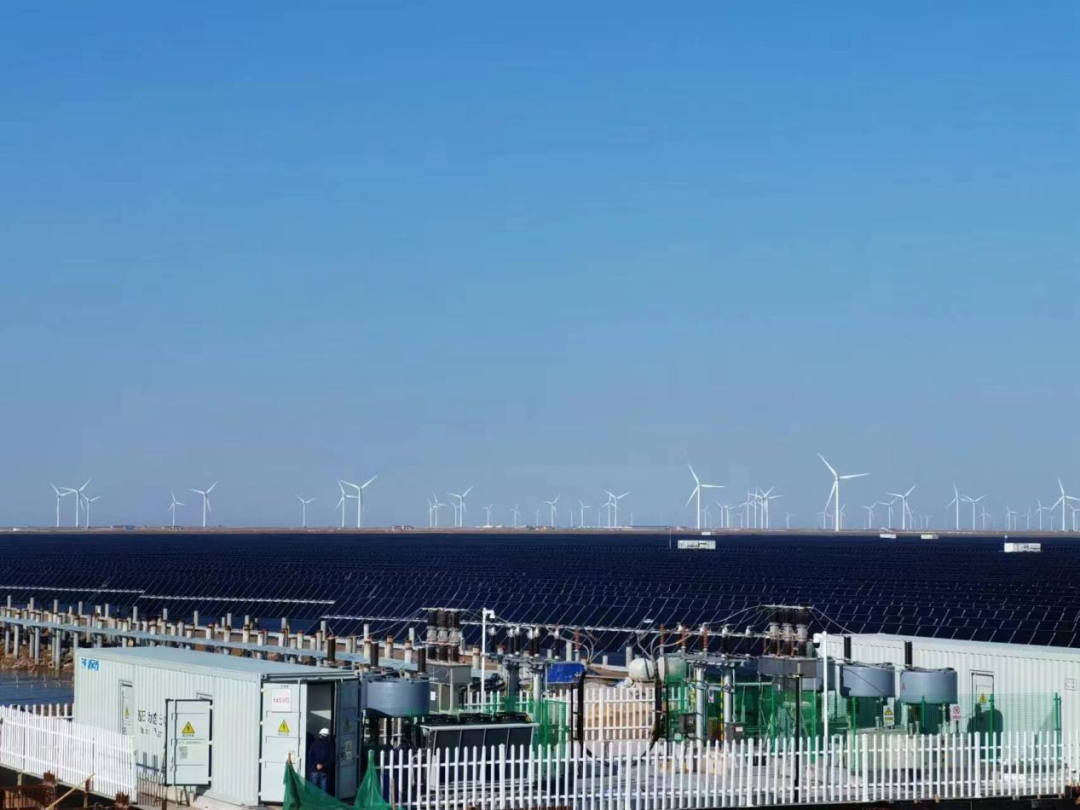

Tangzheng New Energy Power Station has a capacity of 500MW, which is the largest wind-landscape fishing and storage project in Shandong Province. The project uses 10 sets of 13Mvar Static Var Generator(SVG) equipment with a total compensation capacity of 130Mvar to compensate the voltage and power factor of the entire power station. After the equipment is put into operation, the power quality of the photovoltaic power station is guaranteed and the impact on the power grid is reduced.

The site is near the sea, with high humidity, high salt spray characteristics, the equipment after protection treatment, can not be affected by the environment, has been stable operation for 3 years, tested by the Institute of Electrical science, good performance.


2.Static Var Generator product superiority


High and low voltage crossing performance is superior

Excellent high and low voltage crossing control function, performance indicators are better than the national standard, to ensure the stable operation of equipment.


Complex working conditions, multi-machine co-operation

Multi-bus power supply project can realize cooperative switching control by using multiple reactive power compensation devices under complex conditions.


Harmonic control function

 It has the function of multiple harmonic detection, and sends out reverse harmonic current to control, and controls the power quality of harmonic current output at the station



A wide variety of models to meet the needs of project layout

After continuous updating and iteration, the spatial structure layout is optimized, and the products cover forced air cooling, air conditioning internal circulation, air water cooling, air water cooling, water water cooling, indoor and outdoor installation styles, reaching the industry-leading level.


With more than 50 years of technology accumulation and 25,000 + high-voltage cascade product application experience, FGI is committed to providing more customers with professional power quality management solutions and contributing FGI to the early realization of the national "dual carbon" strategic goal.
